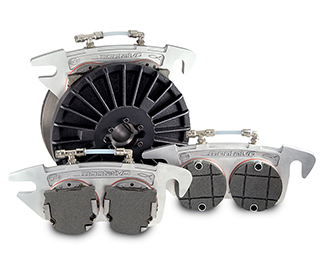

    Standard Series Dual Disc Brakes

  • Standard Series Tension Brakes

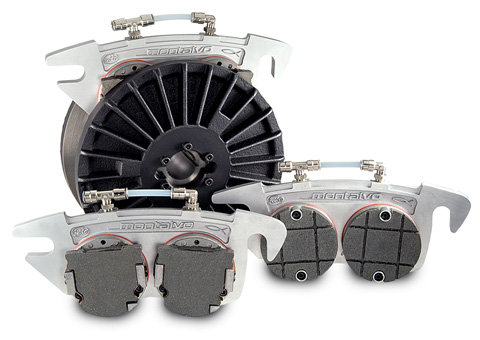

    Dual V and Dual S Friction Modules

  • Standard Series Tension Brakes

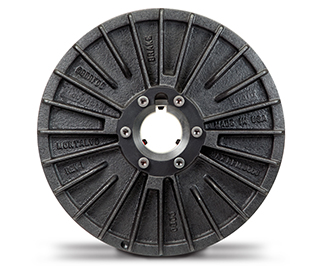

    Standard Series Brake Disc

  • Standard Series Tension Brakes

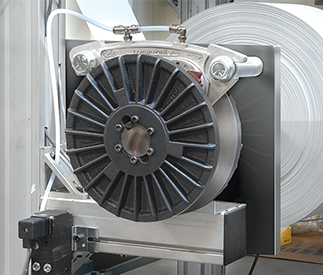

    Standard Series Brake on Roll

Standard Series Tension Brakes

Dual disc performance and control with higher heat dissipation and easy maintenance. Montalvo’s Standard Series of Brakes ensures precise, accurate tension control right from the start.

  • Overview
  • Models & Drawings
  • Documents

Compact Dual Disc Design
The performance and torque range of two discs but designed to fit in even limited spaces. Performance & Versatility combined.

Wide Torque Range
Standard Tension Brakes are available in five different models to give you the precise torque requirements your application requires, whether it’s only 2.2 in-lb or all the way up to 20,905 in-lb.

V Pad Compatible
Standard Tension Brakes are available with Standard Pads or the “tool-less, snap-out, snap-in” V-Pads for rapid brake pad changes.

Quick & Easy Installation
Slide disc/hub assembly onto keyed shaft, attach necessary bolts & set screws and your Standard Brake is ready to operate.

High Thermal Capacity Disc & High Heat Dissipation
Montalvo’s signature high thermal capacity discs combined with the fin design ensures maximum heat dissipation extending the performance & service life of your Standard Tension Brake.

Bi-Directional Operation
Unwind from the top or bottom of your roll.

Air Cooled Disc Brake
What started as an industry innovation has only been refined over Montalvo’s 68 year history giving you unprecedented performance so your application maintains ultimate control at the unwind.

Low Maintenance
Standard Tension Brakes are designed to maximize your productivity and when combined with Montalvo’s V-Pads, maintenance/pad changes are measured in seconds not minutes.

Available Adapters
Standard Brakes are available with or without adapters to ensure easy installation based on the parameters of your application.

For additional information on the Standard Series Tension Brakes please download the Standard Brake Datasheet.

Standard 600 Tension Brake

The Standard 600 Model of Tension Brakes is capable of providing up to 3,000 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-4) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
2.2 – 3,000 7/8″ – 1.75″ 9.31″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
ST-601 Quote 2.2 165 6.6 500 10 750
ST-602 Quote 2.2 330 6.6 1,000 10 1,500
ST-603 Quote 2.2 500 6.6 1,500 10 2,250
ST-604 Quote 2.2 660 6.6 2,000 10 3,000

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.

Standard 800 Tension Brake

The Standard 800 Model of Tension Brakes is capable of providing up to 6,210 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-6) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
3 – 6,210 1.25″ – 2″ 11.75″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
ST-801 Quote 3 230 9.2 690 13.8 1,035
ST-802 Quote 3 460 9.2 1,380 13.8 2,070
ST-803 Quote 3 690 9.2 2,070 13.8 3,105
ST-804 Quote 3 920 9.2 2,760 13.8 4,140
ST-805 Quote 3 1,150 9.2 3,450 13.8 5,175
ST-806 Quote 3 1,380 9.2 4,140 13.8 6,210

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.

Standard 1000 Tension Brake

The Standard 1000 Model of Tension Brakes is capable of providing up to 9,840 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-8) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
3.6 – 9,840 1.375″ – 2.5″ 13.38″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
ST-1001 Quote 3.6 270 10.9 820 16.4 1,230
ST-1002 Quote 3.6 545 10.9 1,640 16.4 2,460
ST-1003 Quote 3.6 820 10.9 2,460 16.4 3,690
ST-1004 Quote 3.6 1,090 10.9 3,280 16.4 4,920
ST-1005 Quote 3.6 1,365 10.9 4,100 16.4 6,150
ST-1006 Quote 3.6 1,640 10.9 4,920 16.4 7,380
ST-1007 Quote 3.6 1,910 10.9 5,740 16.4 8,610
ST-1008 Quote 3.6 2,190 10.9 6,560 16.4 9,840

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.

Standard 1400 Tension Brake

The Standard 1400 Model of Tension Brakes is capable of providing up to 17,250 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-10) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
5 – 17,250 2″ – 4.5″ 17.25″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
ST-1401 Quote 5 380 15.3 1,150 23 1,725
ST-1402 Quote 5 765 15.3 2,300 23 3,450
ST-1403 Quote 5 1,150 15.3 3,450 23 5,175
ST-1404 Quote 5 1,530 15.3 4,600 23 6,900
ST-1405 Quote 5 1,915 15.3 5,750 23 8,625
ST-1406 Quote 5 2,300 15.3 6,900 23 10,350
ST-1407 Quote 5 2,680 15.3 8,050 23 12,075
ST-1408 Quote 5 3,065 15.3 9,200 23 13,800
ST-1409 Quote 5 3,450 15.3 10,350 23 15,525
ST-1410 Quote 5 3,830 15.3 11,500 23 17,250

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.

Standard 1700 Tension Brake

The Standard 1700 Model of Tension Brakes is capable of providing up to 20,905 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-10) and the friction pad coefficient.

Overview

Total Torque Range (in-lb) Shaft Size Range Disc Diameter Drawings
6.1 – 20,905 2.5″ – 5″ 20.88″ PDF DWG SLDPRT STEP

Torque Ranges

Model Quote Request Brake Torque by Friction Pad Coefficient
Low COF Medium COF High COF**
Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb) Min. Torque (in-lb) Max. Torque (in-lb)
ST-1701 Quote 6.1 460 18.1 1,390 27.9 2,090
ST-1702 Quote 6.1 930 18.1 2,790 27.9 4,180
ST-1703 Quote 6.1 1,390 18.1 4,180 27.9 6,270
ST-1704 Quote 6.1 1,860 18.1 5,575 27.9 8,360
ST-1705 Quote 6.1 2,322 18.1 6,970 27.9 10,450
ST-1706 Quote 6.1 2,785 18.1 8,360 27.9 12,545
ST-1707 Quote 6.1 3,250 18.1 9,755 27.9 14,630
ST-1708 Quote 6.1 3,715 18.1 11,150 27.9 16,725
ST-1709 Quote 6.1 4,180 18.1 12,545 27.9 18,815
ST-1710 Quote 6.1 4,645 18.1 13,930 27.9 20,905

*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.

Datasheets

Installation

Additional Information

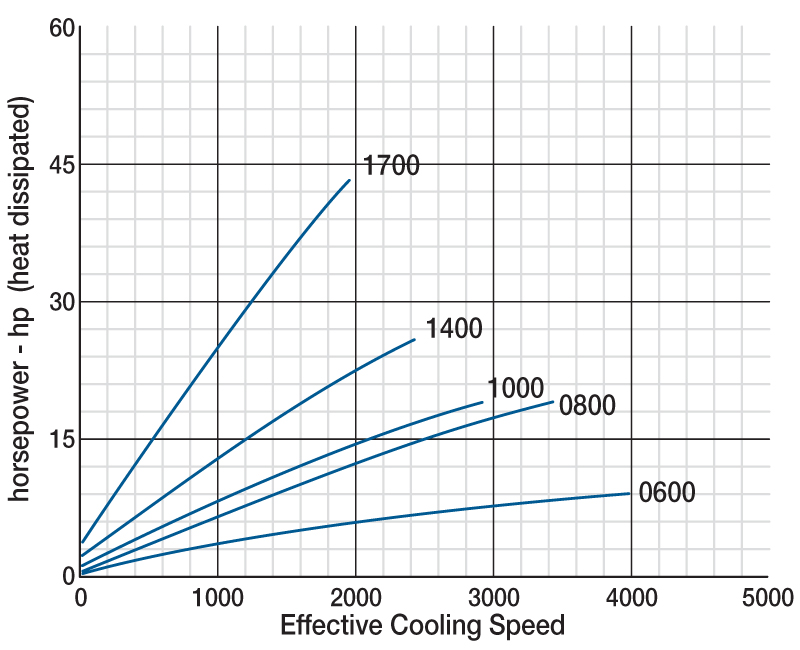

Horse Power Graph
