Live Shaft Load Cells
Available Mounts: Standard, Flange, Split Pillow Block
Designed for use with live shaft rollers, ES Series Live Shaft Load Cells feature a stainless steel body, an IP54 rating, mechanical variance compensation and industry leading sensitivity.
A range of ER Bearing/Head Sizes are available to match standard bearing bores, and are supplied with your Live Shaft Load Cell.
Industry Leading Resolution
ES Live Shaft Load Cells lead the industry in resolution & sensitivity. No one makes a better load cell.
Stainless Steel
A 100% Stainless Steel body & dust proof (IP54) rating makes the ES Live Shaft load cells more durable and more rugged for an extended, dependable service life.
Multiple Mounting Options
Standard, Flange, or Split Pillow Block mounts are available for either inside machine frame to frame, or on top of frame mounting.
M12 Connector
Industry standard connector gives you more flexibility in your cable choice.
Mechanical Variance Compensation
Unique design compensates for shaft expansion & misalignment so performance is never sacrificed in the event of installation variables.
360° Overload Protection
ES Live Shaft Load Cells feature 300% overload protection from any angle. Montalvo keeps your load cells protected & your machines running.
For additional information on the ES Live Shaft Load Cell download the Datasheet.

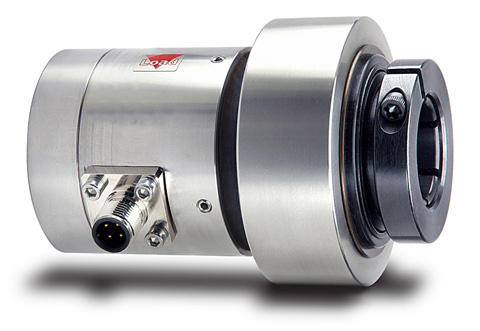

Mounts via a single screw in the rear center of the back of the load cell, typically between machine frames where application forces are 500 lb (2225 N) or less.
Size 0
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-S0-25 | 0.02 (0.09) – 25 (125) | Price Request |
| ES-LS-S0-50 | 0.03 (0.13) – 50 (250) | Price Request |
| ES-LS-S0-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-S0-100 | 0.04 (0.18) – 100 (445) | Price Request |
| ES-LS-S0-150 | 0.10 (0.44) – 150 (750) | Price Request |
Size 2
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-S2-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-S2-100 | 0.07 (0.31) – 100 (445) | Price Request |
| ES-LS-S2-150 | 0.10 (0.44) – 150 (750) | Price Request |
| ES-LS-S2-250 | 0.16 (0.71) – 250 (1250) | Price Request |
| ES-LS-S2-500 | 0.32 (1.42) – 500 (2500) | Price Request |
ER-19 is the standard bearing supplied by Montalvo for LS Size 0
| ES-LS-S0 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER14 | 7/8 | 2-7/8 (73) | 1-7/8 (37) | |
| ER-15 | 15/16 | 2-7/8 (73) | ||
| ER-16 | 1 (25) | 2-7/8 (73) | ||
| ER-205 | 25mm | 2-7/8 (73) | ||
| ER-17 | 1-1/16 | 3-1/4 (83) | ||
| ER-18 | 1-1/8 | 3-1/4 (83) | ||
| ER-19* | 1-3/16 | 3-1/4 (83) | ||
ER-24 is the standard bearing supplied by Montalvo for LS Size 2
| ES-LS-S2 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER-20R | 1-1/4 | 3-5/8 (92) | 2 (51) | |
| ER-206 | 30mm 3-5/8 | (92) | ||
| ER-20 | 1-1/4 | 3-5/8 (92) | ||
| ER-21 | 1-5/16 | 3-5/8 (92) | ||
| ER-22 | 1-3/8 | 3-5/8 (92) | ||
| ER-23 | 1-7/16 | 3-5/8 (92) | ||
| ER-207 | 35mm | 3-5/8 (92) | ||
| ER-24* | 1-1/2 | 4 (102) | ||
| ER-25 | 1-9/16 | 4 (102) | ||
| ER-208 | 40mm | 4 (102) | ||
Mounts to a machine frame via a 4 bolt flange collar. This mounting style may also be required when application forces exceed the capacity of the Standard Mounting Style.
Size 0
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-F0-25 | 0.02 (0.09) – 25 (125) | Price Request |
| ES-LS-F0-50 | 0.03 (0.13) – 50 (250) | Price Request |
| ES-LS-F0-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-F0-100 | 0.04 (0.18) – 100 (445) | Price Request |
| ES-LS-F0-150 | 0.10 (0.44) – 150 (750) | Price Request |
Size 2
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-F2-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-F2-100 | 0.07 (0.31) – 100 (445) | Price Request |
| ES-LS-F2-150 | 0.10 (0.44) – 150 (750) | Price Request |
| ES-LS-F2-250 | 0.16 (0.71) – 250 (1250) | Price Request |
| ES-LS-F2-500 | 0.32 (1.42) – 500 (2500) | Price Request |
| ES-LS-F2-1000 | 0.65 (2.89) – 1,000 (5000) | Price Request |
ER-19 is the standard bearing supplied by Montalvo for LS Size 0
| ES-LS-F0 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER14 | 7/8 | 2-7/8 (73) |
1-7/8 (37) |
|
| ER-15 | 15/16 | 2-7/8 (73) | ||
| ER-16 | 1 (25) | 2-7/8 (73) | ||
| ER-205 | 25mm | 2-7/8 (73) | ||
| ER-17 | 1-1/16 | 3-1/4 (83) | ||
| ER-18 | 1-1/8 | 3-1/4 (83) | ||
| ER-19* | 1-3/16 | 3-1/4 (83) | ||
ER-24 is the standard bearing supplied by Montalvo for LS Size 2
| ES-LS-F2 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER-20R | 1-1/4 | 3-5/8 (92) | 2 (51) | |
| ER-206 | 30mm 3-5/8 | (92) | ||
| ER-20 | 1-1/4 | 3-5/8 (92) | ||
| ER-21 | 1-5/16 | 3-5/8 (92) | ||
| ER-22 | 1-3/8 | 3-5/8 (92) | ||
| ER-23 | 1-7/16 | 3-5/8 (92) | ||
| ER-207 | 35mm | 3-5/8 (92) | ||
| ER-24* | 1-1/2 | 4 (102) | ||
| ER-25 | 1-9/16 | 4 (102) | ||
| ER-208 | 40mm | 4 (102) | ||
Mounts to a machine frame via two bolts at the base of a split pillow block clamp, on top of the machine frame.The mount provides additional support and rigidity.
Size 0
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-P0-25 | 0.02 (0.09) – 25 (125) | Price Request |
| ES-LS-P0-50 | 0.03 (0.13) – 50 (250) | Price Request |
| ES-LS-P0-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-P0-100 | 0.04 (0.18) – 100 (445) | Price Request |
| ES-LS-P0-150 | 0.10 (0.44) – 150 (750) | Price Request |
Size 2
| Model | Load Range – lbs (N) | Price |
|---|---|---|
| ES-LS-P2-75 | 0.05 (0.22) – 75 (375) | Price Request |
| ES-LS-P2-100 | 0.07 (0.31) – 100 (445) | Price Request |
| ES-LS-P2-150 | 0.10 (0.44) – 150 (750) | Price Request |
| ES-LS-P2-250 | 0.16 (0.71) – 250 (1250) | Price Request |
| ES-LS-P2-500 | 0.32 (1.42) – 500 (2500) | Price Request |
| ES-LS-P2-1000 | 0.65 (2.89) – 1,000 (5000) | Price Request |
ER-19 is the standard bearing supplied by Montalvo for LS Size 0
| ES-LS-P0 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER14 | 7/8 | 2-7/8 (73) |
1-7/8 (37) |
|
| ER-15 | 15/16 | 2-7/8 (73) | ||
| ER-16 | 1 (25) | 2-7/8 (73) | ||
| ER-205 | 25mm | 2-7/8 (73) | ||
| ER-17 | 1-1/16 | 3-1/4 (83) | ||
| ER-18 | 1-1/8 | 3-1/4 (83) | ||
| ER-19* | 1-3/16 | 3-1/4 (83) | ||
ER-24 is the standard bearing supplied by Montalvo for LS Size 2
| ES-LS-P2 | ||||
|---|---|---|---|---|
| Bearing # | Ø Shaft | Ø Roller – in (mm) | Max Shaft Engagement – in (mm) | |
| ER-20R | 1-1/4 | 3-5/8 (92) |
2 (51) |
|
| ER-206 | 30mm 3-5/8 | (92) | ||
| ER-20 | 1-1/4 | 3-5/8 (92) | ||
| ER-21 | 1-5/16 | 3-5/8 (92) | ||
| ER-22 | 1-3/8 | 3-5/8 (92) | ||
| ER-23 | 1-7/16 | 3-5/8 (92) | ||
| ER-207 | 35mm | 3-5/8 (92) | ||
| ER-24* | 1-1/2 | 4 (102) | ||
| ER-25 | 1-9/16 | 4 (102) | ||
| ER-208 | 40mm | 4 (102) | ||
Need assistance determining the exact load cell needed for your application? Contact a Montalvo Applications Specialist today for immediate assistance.
