    Available Mounts: Standard, Flange, Split Pillow Block

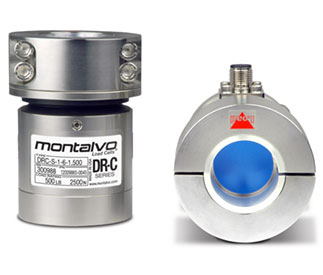

Full Bridge Dead Shaft Idler Load Cells

As alternatives to CMC Ultra and Legacy dead shaft style load cells, Montalvo’s DR-C Series are available in full bridge (or half bridge upon request) configurations, and meet CMC product dimension specifications.

  • Overview
  • Product Options and Specifications
  • Downloads

Direct Replacements
DR-C load cells feature a full bridge (or half bridge) configuration while meeting CMC product dimension specifications to easily drop into to your existing application without any work or process interruption.

Two Bridge Options
If you require the dimensions but only half bridge load cells, we’ve got you covered.

Stainless Steel
A 100% Stainless Steel body & dust proof (IP54) rating makes the DR-C Dead Shaft/Idler load cells more durable and more rugged for an extended, dependable service life.

Industry Leading Resolution
DR-C Full Bridge Load Cells lead the industry in resolution & sensitivity. No one makes a better load cell.

Multiple Mounting Options
Standard, Flange, or Split Pillow Block mounts are available for either inside machine frame to frame, or on top of frame mounting.

Quality, Service, Support
Like all of our products, the DR-C’s are backed by Montalvo’s leading quality, service, and support. We are here for you!

M12 Connector
Industry standard connector gives you more flexibility in your cable choice.

Mechanical Variance Compensation
Unique design compensates for shaft expansion & misalignment so performance is never sacrificed in the event of small installation variables.

360° Overload Protection
DR-C Dead Shaft/Idler Load Cells feature 300% overload protection from any angle. Montalvo keeps your load cells protected & your machines running.

Meets Your Requirements
Multiple load ratings, and four different body sizes to meet the specific needs of your application.

For additional information on the DR-C Dead Shaft-Idler Load Cell download the Datasheet.

Standard Mount

Mounts via a single screw in the rear center of the back of the load cell, typically between machine frames where application forces are 500 lb (2225 N) or less.

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-S0-10 0.002 (0.01) – 10 (50) 1.125 (28.575) Price Request
DR-C-S0-25 0.002 (0.01) – 25 (125) 1.125 (28.575) Price Request
DR-C-S0-50 0.01 (0.04) – 50 (250) 1.125 (28.575) Price Request
DR-C-S0-75 0.01 (0.04) – 75 (375) 1.125 (28.575) Price Request
DR-C-S0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) Price Request
DR-C-S0-150 0.44 (1.96) – 150 (750) 1.125 (28.575) Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

DR-C Size 1 is the alternative to CMC’s Size 1T.

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-S1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-S1-150 0.11 (0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-S1-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-S2-75 0.005 (0.02) – 75 (375) 1.5 (38.099) Price Request
DR-C-S2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-S2-150 0.11(0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-S2-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request
DR-C-S2-500 0.218 (0.97) – 500 (2500) 1.5 (38.099) Price Request

Size 2-s (shaft ends up to ø 1.5 inches max.)

DR-C Size 2s is the alternative to CMC’s Size 2T.

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-S2s-75 0.005 (0.02) – 75 (375) 1.5 (38.099) Price Request
DR-C-S2s-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-S2s-150 0.11(0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-S2s-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request
DR-C-S2s-500 0.218 (0.97) – 500 (2500) 1.5 (38.099) Price Request

Flange Mount

Mounts to a machine frame via a 4 bolt flange collar. This mounting style may also be required when application forces exceed the capacity of the Standard Mounting Style.

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-F0-10 0.002 (0.01) – 10 (50) 1.125 (28.575) Price Request
DR-C-F0-25 0.002 (0.01) – 25 (125) 1.125 (28.575) Price Request
DR-C-F0-50 0.01 (0.04) – 50 (250) 1.125 (28.575) Price Request
DR-C-F0-75 0.01 (0.04) – 75 (375) 1.125 (28.575) Price Request
DR-C-F0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) Price Request
DR-C-F0-150 0.44 (1.96) – 150 (750) 1.125 (28.575) Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

DR-C Size 1 is the alternative to CMC’s Size 1T.

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-F1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-F1-150 0.11 (0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-F1-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-F2-75 0.005 (0.02) – 75 (375) 1.5 (38.099) Price Request
DR-C-F2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-F2-150 0.11 (0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-F2-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request
DR-C-F2-500 0.218 (0.97) – 500 (2500) 1.5 (38.099) Price Request
DR-C-F2-1000 0.309 (1.37) – 1,000 (5000) 1.5 (38.099) Price Request

Size 2-s (shaft ends up to ø 1.5 inches max.)

DR-C Size 2s is the alternative to CMC’s Size 2T.

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-F2s-75 0.005 (0.02) – 75 (375) 1.5 (38.099) Price Request
DR-C-F2s-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-F2s-150 0.11 (0.49) – 150 (750) 1.5 (38.099) Price Request
DR-C-F2s-250 0.176 (0.78) – 250 (1250) 1.5 (38.099) Price Request
DR-C-F2s-500 0.218 (0.97) – 500 (2500) 1.5 (38.099) Price Request
DR-C-F2s-1000 0.309 (1.37) – 1,000 (5000) 1.5 (38.099) Price Request

Split Pillow Block Mount

Mounts to a machine frame via two bolts at the base of a split pillow block clamp, on top of the machine frame. The mount provides additional support and rigidity.

Available Load Ranges & Drawings

Size 0 (shaft ends up to ø 1.125 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-P0-10 0.006 (0.027) – 10 (50) 1.125 (28.575) Price Request
DR-C-P0-25 0.02 (0.09) – 25 (125) 1.125 (28.575) Price Request
DR-C-P0-50 0.03 (0.13) – 50 (250) 1.125 (28.575) Price Request
DR-C-P0-75 0.05 (0.22) – 75 (375) 1.125 (28.575) Price Request
DR-C-P0-100 0.04 (0.18) – 100 (445) 1.125 (28.575) Price Request
DR-C-P0-150 0.10 (0.44) – 150 (750) 1.125 (28.575) Price Request

Size 1 (shaft ends up to ø 1.5 inches max.)

DR-C Size 1 is the alternative to CMC’s Size 1T.

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-P1-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-P1-150 0.10 (0.44) – 150 (750) 1.5 (38.099) Price Request
DR-C-P1-250 0.16 (0.71) – 250 (1250) 1.5 (38.099) Price Request

Size 2 (shaft ends up to ø 1.5 inches max.)

Drawings
PDF STEP

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-P2-75 0.05 (0.22) – 75 (375) 1.5 (38.099) Price Request
DR-C-P2-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-P2-150 0.10 (0.44) – 150 (750) 1.5 (38.099) Price Request
DR-C-P2-250 0.16 (0.71) – 250 (1250) 1.5 (38.099) Price Request
DR-C-P2-500 0.32 (1.42) – 500 (2500) 1.5 (38.099) Price Request
DR-C-P2-1000 0.65 (2.89) – 1,000 (5000) 1.5 (38.099) Price Request

Size 2-s (shaft ends up to ø 1.5 inches max.)

DR-C Size 2s is the alternative to CMC’s Size 2T.

Contact Us for DR-C-P2s Load Cell Drawing

Model Load Range – lbs (N) Max. Shaft ø in (mm) Price
DR-C-P2s-75 0.05 (0.22) – 75 (375) 1.5 (38.099) Price Request
DR-C-P2s-100 0.07 (0.31) – 100 (445) 1.5 (38.099) Price Request
DR-C-P2s-150 0.10 (0.44) – 150 (750) 1.5 (38.099) Price Request
DR-C-P2s-250 0.16 (0.71) – 250 (1250) 1.5 (38.099) Price Request
DR-C-P2s-500 0.32 (1.42) – 500 (2500) 1.5 (38.099) Price Request
DR-C-P2s-1000 0.65 (2.89) – 1,000 (5000) 1.5 (38.099) Price Request

Datasheet
