CS Series Tension Brake
Low Profile Design
A compact, low profile design makes the CS ideal for web press, narrow web, flexopress, label press, slitter/rewinder, die cutter and other small scale applications.
Multiple Torque Ranges
CS Tension Brakes are available in two models for wider torque range options in order to meet the demands of your application.
Quick & Easy Installation
Just slide the assembly onto your keyed shaft, secure it with the torque pin and setscrews, and you are ready to apply air and run.
Cost Effective
CS Tension Brakes are one of the most cost effective small scale brake options in the industry but without sacrificing performance & control.
High Capacity, Low Inertia
A wide torque capacity expands the capabilities of your application while eliminating residual drag.
Low Maintenance
CS Tension Brakes are designed to maximize your productivity and thus require little maintenance with an easy & quick pad changing process.

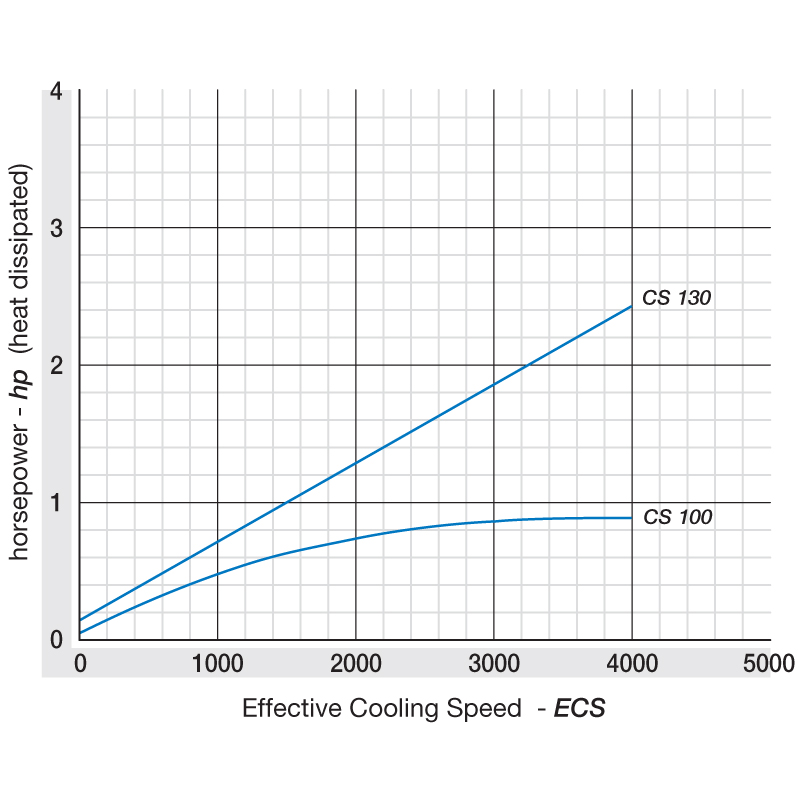

High Heat Dissipation & High Performance
Ensure your process starts off right with an industry leader in light duty brake performance. Brake fin design ensures maximum heat dissipation extending the performance & service life of your CS Tension Brake.
For additional information on the CS-Series Tension Brakes please download the
CS Brake Datasheet.
The CS100 Model of Tension Brakes is capable of providing up to 300 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-4) and the friction pad coefficient.
| Total Torque Range (in-lb) | Shaft Size Range | Disc Diameter | Drawings |
|---|---|---|---|
| 0.22 – 300 | 0.5″ – 1″ | 5.632″ | PDF DWG SLDPRT STEP |
| Model | Quote Request | Brake Torque by Friction Pad Coefficient | |||||
|---|---|---|---|---|---|---|---|
| Low COF | Medium COF | High COF** | |||||
| Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | ||
| CS-101 | Quote | 0.22 | 16 | 0.67 | 50 | 1 | 75 |
| CS-102 | Quote | 0.22 | 33 | 0.67 | 100 | 1 | 150 |
| CS-103 | Quote | 0.22 | 50 | 0.67 | 150 | 1 | 225 |
| CS-104 | Quote | 0.22 | 66 | 0.67 | 200 | 1 | 300 |
*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
The CS130 Model of Tension Brakes is capable of providing up to 600 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-6) and the friction pad coefficient.
| Total Torque Range (in-lb) | Shaft Size Range | Disc Diameter | Drawings |
|---|---|---|---|
| 0.29 – 600 | 7/8″ – 1 3/8″ | 6.89″” | PDF DWG SLDPRT STEP |
| Model | Quote Request | Brake Torque by Friction Pad Coefficient | |||||
|---|---|---|---|---|---|---|---|
| Low COF | Medium COF | High COF** | |||||
| Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | ||
| CS-131 | Quote | 0.29 | 22 | 0.85 | 66 | 1.3 | 100 |
| CS-132 | Quote | 0.29 | 44 | 0.85 | 133 | 1.3 | 200 |
| CS-133 | Quote | 0.29 | 66 | 0.85 | 200 | 1.3 | 300 |
| CS-134 | Quote | 0.29 | 88 | 0.85 | 266 | 1.3 | 400 |
| CS-135 | Quote | 0.29 | 110 | 0.85 | 333 | 1.3 | 500 |
| CS-136 | Quote | 0.29 | 132 | 0.85 | 396 | 1.3 | 600 |
*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
