Ideal for light to medium duty applications, CS Series Brake features easy installation, low maintenance, and precision control to give your application greater versatility and increased productivity.
CD Series Tension Brake
- Overview
- Models & Drawings
- Documents
High Capacity, Low Inertia
A wide torque capacity expands the capabilities of your application while eliminating residual drag.
Low Maintenance
CD Tension Brakes are designed to maximize your productivity and thus require little maintenance with an easy & quick pad changing process.

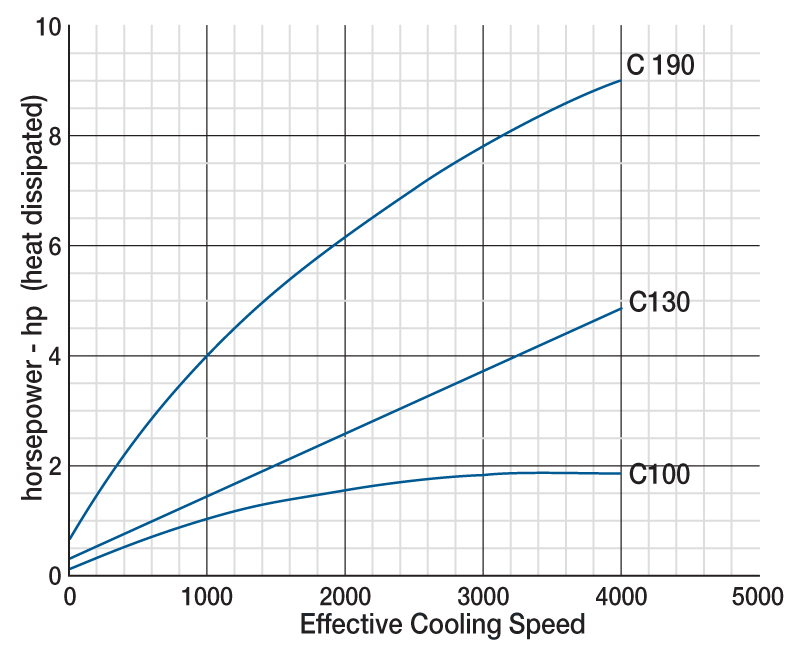

High Heat Dissipation & High Performance
Ensure your process starts off right with an industry leader in light duty brake performance. Brake fin design ensures maximum heat dissipation extending the performance & service life of your CD Tension Brake.
Wide Torque Range
CD Tension Brakes are available in three different models for wider torque range options to meet the demands of your application whether its 0.44 in-lb all the way up to 2,608 in-lb.
Quick & Easy Installation
Just slide the assembly onto your keyed shaft, secure it with the torque pin and setscrews, install friction modules, and you are ready to apply air and run.
Low Profile Compact Design
A compact, low profile design makes the CD ideal for web press, narrow web, flexopress, tag/label press, slitter/rewinder, die cutter and other small scale applications.
Cost Effective
CD Tension Brakes are one of the most cost effective small scale brake options in the industry but without sacrificing performance & control.
For additional information on the CD-Series Tension Brakes please download the CD Brake Datasheet.
CD-100 Tension Brake
The CD-100 Model of Tension Brakes is capable of providing up to 600 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-4) and the friction pad coefficient.
Overview
| Total Torque Range (in-lb) | Shaft Size Range | Disc Diameter | Drawings |
|---|---|---|---|
| 0.44 – 600 | 0.625″ – 1″ | 5.632″ | PDF DWG SLDPRT STEP |
Torque Ranges
| Model | Quote Request | Brake Torque by Friction Pad Coefficient | |||||
|---|---|---|---|---|---|---|---|
| Low COF | Medium COF | High COF** | |||||
| Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | ||
| CD-101 | Quote | 0.44 | 33 | 1.33 | 100 | 2 | 150 |
| CD-102 | Quote | 0.44 | 66 | 1.33 | 200 | 2 | 300 |
| CD-103 | Quote | 0.44 | 100 | 1.33 | 300 | 2 | 450 |
| CD-104 | Quote | 0.44 | 132 | 1.33 | 400 | 2 | 600 |
*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
CD-130 Tension Brake
The CD-130 Model of Tension Brakes is capable of providing up to 1,200 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-6) and the friction pad coefficient.
Overview
| Total Torque Range (in-lb) | Shaft Size Range | Disc Diameter | Drawings |
|---|---|---|---|
| 0.58 – 1,200 | 0.875″ – 1.75″ | 6.89″ | PDF DWG SLDPRT STEP |
Torque Ranges
| Model | Quote Request | Brake Torque by Friction Pad Coefficient | |||||
|---|---|---|---|---|---|---|---|
| Low COF | Medium COF | High COF** | |||||
| Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | ||
| CD-131 | Quote | 0.58 | 44 | 1.7 | 133 | 2.6 | 200 |
| CD-132 | Quote | 0.58 | 88 | 1.7 | 266 | 2.6 | 400 |
| CD-133 | Quote | 0.58 | 132 | 1.7 | 400 | 2.6 | 600 |
| CD-134 | Quote | 0.58 | 176 | 1.7 | 533 | 2.6 | 800 |
| CD-135 | Quote | 0.58 | 220 | 1.7 | 666 | 2.6 | 1,000 |
| CD-136 | Quote | 0.58 | 264 | 1.7 | 798 | 2.6 | 1,200 |
*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
CD-190 Tension Brake
The CD-190 Model of Tension Brakes is capable of providing up to 2,608 in-lb of torque depending on the amount and style of friction pads used. The chart below displays the relative torque output based on the number of friction pads (1-8) and the friction pad coefficient.
Overview
| Total Torque Range (in-lb) | Shaft Size Range | Disc Diameter | Drawings |
|---|---|---|---|
| 0.98 – 2,608 | 0.88″ – 1.75″ | 9.31″ | PDF DWG SLDPRT STEP |
Torque Ranges
| Model | Quote Request | Brake Torque by Friction Pad Coefficient | |||||
|---|---|---|---|---|---|---|---|
| Low COF | Medium COF | High COF** | |||||
| Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | Min. Torque (in-lb) | Max. Torque (in-lb) | ||
| CD-191 | Quote | 0.98 | 72 | 2.9 | 216 | 4.4 | 326 |
| CD-192 | Quote | 0.98 | 144 | 2.9 | 432 | 4.4 | 648 |
| CD-193 | Quote | 0.98 | 216 | 2.9 | 648 | 4.4 | 978 |
| CD-194 | Quote | 0.98 | 288 | 2.9 | 864 | 4.4 | 1,296 |
| CD-195 | Quote | 0.98 | 360 | 2.9 | 1,080 | 4.4 | 1,630 |
| CD-196 | Quote | 0.98 | 432 | 2.9 | 1,296 | 4.4 | 1,956 |
| CD-197 | Quote | 0.98 | 504 | 2.9 | 1,512 | 4.4 | 2,282 |
| CD-198 | Quote | 0.98 | 576 | 2.9 | 1,728 | 4.4 | 2,608 |
*Min. Torque is based on 1 psi to 1 pad. Max. Torque is based on 75 psi to all pads.
**High COF Pads are the standard pads supplied with all brakes.
